Kirsch Architrac Series 94001 Traverse Rod
Rods, Components and Mounting Hardware
Architrac Home Page
 Series 94001 Spec Sheet
 Installation Guide



Parts and Components





To Find a particular item on this page...
 Press the "Ctrl" and "F" key on your keypad at the same time to open the Find-on-Page box,
then enter a partial or complete item name, number or description.

We discount combine shipping


Assembled Set / Track only

Contact us for current pricing and ordering

  Top

  Track only



Assembled set:


  • Drapery Heading: Pleated or Ripplefold

  • Mounting: Ceiling, Wall

  • Draw type: Cord, Hand, Baton, AMP Motorized

  • One-way draw maximum 20'

  • Split draw maximum 40'

  • Made to order

Contact us for a quote
___________________________

Track only:

  • 12' Track $103.88

  • 16' Track $130.72

  • 20' Track $152.40

  • Cut to size or left whole

Contact us for ordering



Track Components & Hardware

  Top

Kirsch Ceiling Bracket
Item # DRP-94130
 Part #s 94130025 White, 94130090 Anodized



 click an image to enlarge

Compatible with Kirsch Estate Rod and
Architrac Series 94001



( In Stock )
Price $5.92 each



Price $101.70 (Box of 20)

 Kirsch Architrac Series 94001 Wall Bracket
Item # DRP-84129
Part #'s 84129059, 84129064, 84129025, 84129061


click image to enlarge

 Clearance: 1-3/4" - 3-1/4"
Return: 3-1/2" - 4-1/2"

Available in Black, Bronze, White & Zink



( In Stock )
Price $8.32 each



Price $123.70 (Box of 20)

 		Kirsch Universal Wall Bracket Base

Kirsch Universal "L" Bracket Base, Item # DRP-81003, Part #81003- im2
Kirsch Universal "L" Bracket Base, Item # DRP-81003, Part #81003-, im1
3" L Bracket Base shown

Available in 3", 5", and 6" in 4 color finishes:
White, Zink (Silver) Bronze, and Black

More details


Kirsch Double Wall Bracket
Item # DRP-94125
Part # 94125025

Finish:  White

Clearance 1-1/4" - 2-1/2", Return 6"

Compatible with Kirsch Estate Rod and
Architrac Series 94001 ceiling brackets.





Price $13.22 (each)





Price $183.80 (Box of 20)



Splice for Kirsch Estate Rod &
Architrac Series 94001
Item # DRP-94109
Part # 94109090



Finish: Anodized

Compatible with Kirsch Estate Rod and
Architrac Series 94001

( In Stock )
Price $8.97 (each)

Price $159.80 (Box of 20)



Kirsch Architrac Series 94001
Center Pulley
Item # DRP-94121
Part # 94121058

Finish: Clear

( In Stock )
Price $13.28 (each)

Price $112.70 (Box of 10)

1" Ball Bearing Pulley - Left
Item # DRP-94102W
Part #  9102W



 Finish: White

( In Stock )
Price $9.31 (each)

Price $84.70 (Box of 10)

1" Ball Bearing Pulley - Right
Item # DRP-94101W
Part # 9101W



 Finish: White

( In Stock )
Price $9.31 (each)

Price $84.70 (Box of 10)

One-Way Draw Pulley - Left
Item # DRP-94108
Part # 9108W

Finish: White

( In Stock )
Price $5.98 (each)

Price $55.70 (Box of 10)

One-Way Draw Pulley - Right
Item # DRP-94107
Part # 9107W


 Finish: White

( In Stock )
Price $5.98 (each)

Price $55.70 (Box of 10)

Kirsch One-Way Universal
Pulley Assembly
Item # DRP-84302
Part # 84302058

For use on left or right.

Compatible with Kirsch Estate Rod and
Architrac Series 94001

( In Stock )
Price $8.70 (each)

Price $117.80 (Box of 20)

Kirsch Two-Way Universal
Pulley Assembly
Item # DRP-84301
Part # 84301058

Compatible with Kirsch Estate Rod and
Architrac Series 94001

For use on left or right.

( In Stock )
Price $7.98 (each)

Price $129.70 (Box of 20)

Kirsch Architrac Series 94001 Left Endcap
Item # DRP-84304
Part # 84304xxx


 Available in Black, Bronze, Gray or White



( In Stock )
Price $3.58 each


Price $65.70 (Box of 20)



Kirsch Architrac Series 94001 Right Endcap
Item # DRP-84303
Part # 84303xxx


 Available in Black, Bronze, Gray or White



( In Stock )
Price $3.58 each


Price $65.70 (Box of 20)



Kirsch Male Snap
Item # DRP-92125
Part # 92125061

Kirsch Male Snap, Accepts Eyelet #92126-061, Part # 92125, image1 Kirsch Male Snap, Accepts Eyelet #92126-061, Part # 92125, image2
Kirsch Male Snap, Accepts Eyelet #92126-061, Part # 92125, size
click an image to enlarge
For use with all Kirsch Snaps.
Accepts Eyelet #92126061

( In Stock )
Price $12.40 (Pkg of 10)

Price $28.50 (Pkg of 25)

Price $89.80 (Pkg of 100)

Kirsch Eyelet for Male Snap
Item # DRP-92126
Part # 92126061

Kirsch Eyelet for Male Snap Accepts #92125-061, Part # 92126-061, image1 Kirsch Eyelet for Male Snap Accepts #92125-061, Part # 92126-061, image2
Kirsch Eyelet for Male Snap Accepts #92125-061, Part # 92126-061, measurement
click an image to enlarge
For use with Male Snap #92125061

( In Stock )
Price $9.60 (Pkg of 10)

Price $21.50 (Pkg of 25)

Price $68.80 (Pkg of 100)

Kirsch 1" Ripplefold Nylon Snap Tape
Item # DRP-921451
Part # 921451025

Kirsch 1" Ripplefold Nylon Snap Tape sold by the yard
 Kirsch 1 inch Ripplefold Snap Tape, Part # 921451-052
click an image to enlarge
1" wide, 4-1/4" spacing.

White is sold by the yard; 9 snaps per yard.
(Carts quantity equals yardage)

( In Stock )
Price $4.67 (a yard)

____________________________________

Sold by the roll (100 yards).
 White, Clear or Black,
Part #'s 921451025, 921451058, 921451059





Price $287.80 (100 yd Roll)

Kirsch Pleated Stiffener
with Grommets
Item # DRP-94145
Part # 94145025

Compatible with Architrac Series
94001, 94003, 94004, 94005, and K-Rail.

( In Stock )
Price $2.97 (each)

Price $92.10 (Box of 100)

Kirsch Ripplefold Stiffener
with Grommets
Item # DRP-94146
Part # 94146025

Compatible with Architrac Series
94001, 94003, 94004, 94005, and K-Rail.

( In Stock )
Price $2.97 (each)

Price $92.10 (Box of 100)

Carriers & Slides

 Top

Kirsch Ripplefold 2 Sided Snap Pendant
 Item # DRP-82001
 Part #'s 82001025 White, 82001061 Gray
82001064 Bronze, 82001059 Black
Kirsch Ripplefold 2 Sided Snap Pendant 82001-xxx, 4 color choices
click to enlarge

For use with Ripplefold wheeled carriers
item # DRP-82000 (sold separately)

Available in White, Gray, Bronze or Black.

Compatible with Kirsch Estate and Architrac Series
94001, 94003, 94004, 94005, and K-Rail.

( In Stock )





Price $7.48 (Pkg of 25)





Price $23.85 (Pkg of 100)





Price $94.80 (Box of 500)

Kirsch Ripplefold Wheeled Carriers
Item # DRP-82000
 Part #'s
82120059 Black, 82120025 White (120%)
82100059 Black, 82100025 White (100%)
82080059 Black, 82080025 White (80%)
82060059 Black, 82060025 White (60%)

click to enlarge
Used in combination with Snap Pendant
item # DRP-82001 (sold separately)

Carriers come connected on one continuous
uncut cord, up to 500 carriers.

Available in Black or White

Spacing between carriers:
120%=1-7/8", 100%=2-1/8", 80%=2-3/8", 60%=2-5/8"

Compatible with Kirsch Estate and Architrac Series
94001, 94003, 94004, 94005, and K-Rail.

( In Stock )



Price $24.80  (String of 25)



Price $84.20 (String of 100)



Price $315.70 (Roll of 500)

Kirsch 16mm Ball Bearing Carrier
Item # DRP-86700
 Part #'s 86700059 Black, 86700064 Bronze
86700061 Gray, 86700025 White

 Kirsch 16mm Ball Bearing Carrier, part # 86700-xxx 4 color choices
click to enlarge

Available in Black, Bronze, Gray and White

Compatible with Kirsch Estate and Architrac Series
94001, 94003, 94004, 94005, and K-Rail.

( In Stock )





Price $6.80 (Pkg of 10)





Price $53.70 (Pkg of 100)



Kirsch Architrac 25mm Ball Bearing Carrier
Item # DRP-9670
 Part # 9670025

 Kirsch Architrac 25mm Ball Bearing Carrier, Part # 9670-025
click to enlarge
Compatible with Architrac Series
94001, 94003, 94004, 94005, and K-Rail.

( In Stock )
Price $7.70 (Pkg of 10)

Price $18.80 (Pkg of 25)

Price $61.70 (Qty of 100)

Kirsch Architrac Ball Bearing Carrier with Hook
Item # DRP-9673
 Part # 9673061

Kirsch Architrac Ball Bearing Carrier with hook, Part # 9673-025
click to enlarge
Compatible with Architrac Series
94001, 94003, 94004, 94005, and K-Rail.

( In Stock )
Price $16.80 (Pkg of 10)

Price $37.80 (Pkg of 25)

Price $153.70 (Qty of 100)

Kirsch Architrac Ball Bearing Carrier
with Hook Eyelet
Item # DRP-9687
 Part # 9687061

Kirsch Architrac Ball Bearing Carrier with Hook and Eyelet, Part # 9687-025
click to enlarge

Requires #10 chain to connect
(sold separately).

Compatible with Architrac Series
94001, 94003, 94004, 94005, and K-Rail.

( In Stock )
Price $25.80 (Pkg of 10)

Price $64.75 (Pkg of 25)

Price $220.80 (Qty of 100)

Master Carriers

  Top
Kirsch Butt Master Carrier, Left
Item # DRP-84111
Part #s 84111059, 84111025

For drapes with Pleated or Ripplefold heading.
Available in Black or White

Compatible with Estate Rod and Architrac Series 94001





Price $9.78 (each)

 		Kirsch Butt Master Carrier, Right
Item # DRP-84110
Part #s 84110059, 84110025

For drapes with Pleated or Ripplefold heading.
Available in Black or White

Compatible with Estate Rod and Architrac Series 94001





Price $9.78 (each)

 		Kirsch Butt Master Carrier Set
 Item # DRP-84110-111
Part #s 84111059 and 84110059
Part #s 84111025 and 84110025

Set includes 1-left & 1-right master carrier
For drapes with Pleated or Ripplefold heading.
Available in Black or White

Compatible with Estate Rod and Architrac Series 94001





Price $18.56 (a set)
Kirsch Wheeled Butt Master Carrier, Left
Item # DRP-84214
Part #s 84214059, 84214061
Replaces part # 84102059, 84102061

For drapes with Ripplefold heading.
Available in Black or Zink

Compatible with Estate Rod and Architrac Series 94001





Price $9.76 (each)



 Kirsch Wheeled Butt Master Carrier, Right
Item # DRP-84213
Part #s 84213059, 84213061
Replaces part # 84101059, 84102061

For drapes with Ripplefold heading.
Available in Black or Zink

Compatible with Estate Rod and Architrac Series 94001





Price $9.76 (each)



 Kirsch Wheeled Butt Master Carrier Set
 Item # DRP-84213-214
 Part #s 84214059 and 84213059
Part #s 84214061 and 84213061

Set includes 1-left & 1-right master carrier.
For drapes with Ripplefold heading.
Available in Black or Zink

Compatible with Estate Rod and Architrac Series 94001





Price $16.72 (a set)

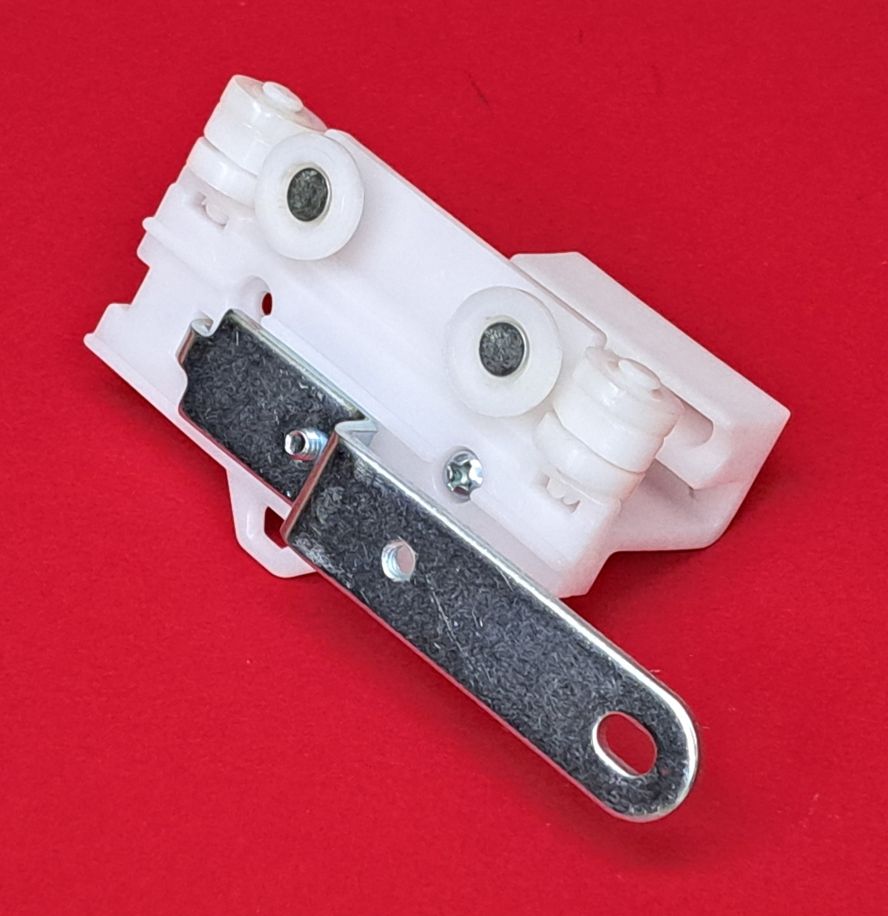

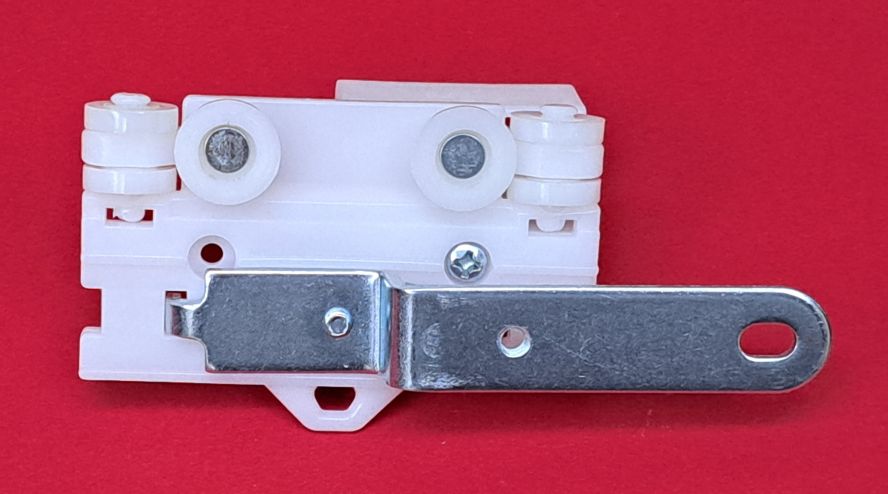

Kirsch Left Wheeled
Overlap Master Carrier
Item # DRP-84104
Part # 84104059, 84104061

For drapes with Pleated or Ripplefold heading.
Available in Black or Zink

Compatible with Estate Rod and Architrac Series 94001

Replaces part # 94104061





Price $9.76 (each)

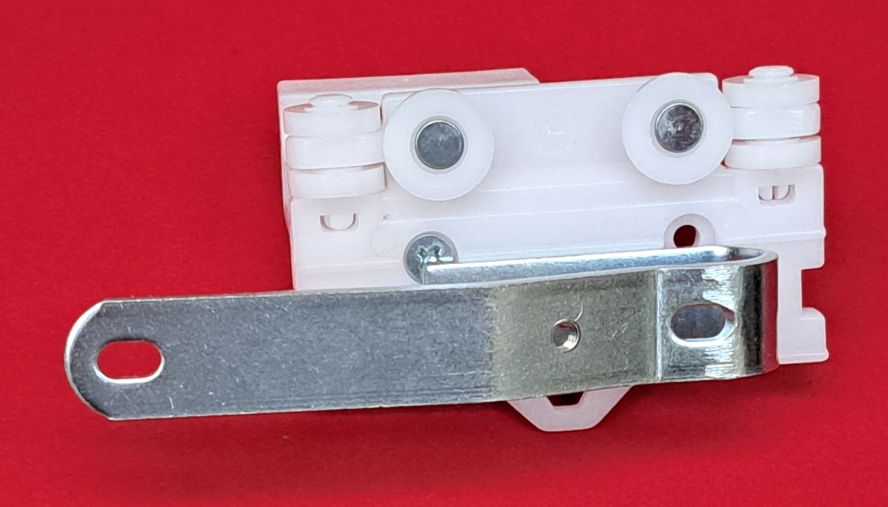

Kirsch Right Wheeled
Overlap Master Carrier
Item # DRP-84103
Part # 84103059, 84103061

For drapes with Pleated or Ripplefold heading.
Available in Black or Zink

Compatible with Estate Rod and Architrac Series 94001

Replaces part # 94103061





Price $9.76 (each)

Kirsch Wheeled
Overlap Master Carrier Set
Item # DRP-84103-104
Part # 84103059 & 84104061

Set includes 1-left & 1-right master carrier.
For drapes with Pleated or Ripplefold heading.
Available in Black or Zink

Compatible with Estate Rod and Architrac Series 94001





Price $18.52 (a set)
Kirsch Architrac Left Wheeled
 Through the Fabric Master
 Item # DRP-84108
Part #s 84108061

For use with Pleated drapes.

For use with Kirsch Architrac Series 94001

( In Stock )
 Price $9.76 (each)



 Kirsch Architrac Right Wheeled
 Through the Fabric Master
 Item # DRP-84107
Part #s 84107061

For use with Pleated drapes.

For use with Kirsch Architrac Series 94001

( In Stock )
 Price $9.76 (each)



 Kirsch Architrac Left Wheeled
 Through the Fabric Master Carrier Set
 Item # DRP-84107-108
Part #s 84107061, 84108061

Set includes 1-left & 1-right master carrier.
 For use with Pleated drapes.

For use with Kirsch Architrac Series 94001

( In Stock )
 Price $18.52 (a set)

Kirsch Architrac Left
Wheeled Over the top Master
 Item # DRP-84106
Part #s 84106061

For use with Pleated drapes.

For use with Kirsch Architrac Series 94001

Price $9.76 (each)

 		Kirsch Architrac Right
Wheeled Over the top Master
 Item # DRP-84105
Part #s 84105061

For use with Pleated drapes.

For use with Kirsch Architrac Series 94001

Price $9.76 (each)

 		Kirsch Architrac
Wheeled Over the top
Master Carrier Set
 Item # DRP-84105-106
Part #s 84105061, 84106061

Set includes 1-left & 1-right master carrier.
 For use with Pleated drapes.

For use with Kirsch Architrac Series 94001

Price $18.52 (a set)

Wheeled Overlap Master Carrier, Left
Item # DRP-94104
Part # 94104


Compatible with Kirsch Architrac Series 94001

Replaced by part # 84104061

(Special order-ara)

Price $11.80 (each)

Wheeled Overlap Master Carrier, Right
Item # DRP-94103
Part # 94103


Compatible with Kirsch Architrac Series 94001

Replaced by part # 84103061

(Special order-ara)

Price $11.80 (each)





  Top

 Home  |  Contact Us  |  How To Order  |  Payment Methods  |  Shipping  |  Return Policy  |  Sales

Copyright © 1997- Blinds USA Inc. All Rights Reserved
